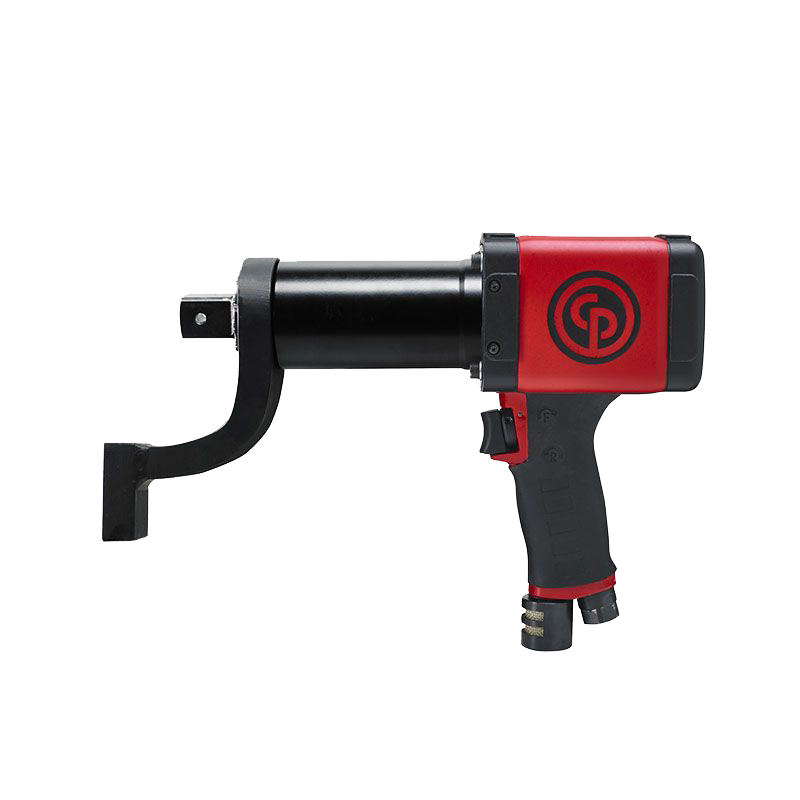

Pneumatic CP6626 1 inch stall torque nutrunner with 2600 Nm capacity

CP6626 - 1" Stall Torque Pneumatic Nutrunner (2600 Nm)

Maximum Power and Precision for Heavy-Duty Bolting

The CP6626 is a robust 1" pneumatic torque wrench engineered for high-torque applications where power and reliability are non-negotiable. Designed for the rigors of Power Generation, Oil & Gas, and Heavy Industrial maintenance, this tool is a standout in our collection of Pneumatic Torque Multipliers, delivering a massive 2,600 Nm (1,920 ft.lbf) of torque with the precision of a stall-type motor.

Built with a lightweight composite housing and a high-performance vane-type air motor, the CP6626 offers an exceptional power-to-weight ratio. Despite its heavy-duty output, it maintains ultra-low vibration levels and a swiveling pistol grip to ensure operator comfort during long shifts. With an accuracy rating of ±5 %, the CP6626 is the ideal solution for ensuring bolt integrity in hard and soft joints alike.

Key Benefits

Extreme Torque Density

Delivers up to 2,600 Nm in a compact frame, perfect for large-diameter bolting in restricted spaces.

Enhanced Ergonomics

Features a swiveling handle and one-finger reverse mode, reducing physical strain during high-torque operations.

Industrial Grade Reliability

Optimized for use with FRL ATC packs to ensure consistent performance and motor protection.

Steady Power Delivery

Compared to other mechanical Torque Multipliers, the non-shut-off stall system provides continuous rotation for a smoother bolting process.

Technical Specifications

Feature	Imperial	Metric
Max Torque (Forward/Reverse)	1,920 ft.lbf	2,600 Nm
Min Torque	516 ft.lbf	700 Nm
Free Speed	10 rpm	10 rpm
Accuracy	±5%	±5%
Weight (With Reaction Arm)	14.3 lb	6.5 kg
Output Drive	1" Sq.	1" Sq.
Air Consumption (Free Speed)	48 cfm	23 l/s
Vibration Level	<8.9 ft/s²	<2.7m/s2
Spline Type	47	47
Air Inlet Thread	3/8" NPT	3/8" NPT
Max Working Pressure	90 psi	6.3 bar

Design & Functional Excellence

Output Drive

Heavy-duty 1" Square drive with a hole retainer for secure socket attachment.

Reaction Bar

Includes a high-strength S-type reaction bar for safe torque counter-acting.

Construction

High-quality composite main material for durability and thermal protection in cold environments.

Control

Precise torque adjustment via the provided Torque-to-Pressure chart.

The CP6626 is designed to handle the toughest bolts in the most demanding environments, combining massive 1" drive power with the finesse of a precision nutrunner.

Contact TorqLite today for expert consultation, technical support, or to receive a custom quote for your bolting operations.

Related Products

CP6613

CP6613 features a vane-type motor and a non-shut-off stall system engineered for consistent torque delivery. It delivers strong precision performance in tight or repetitive bolting tasks while minimizing operator strain during extended use.

View CP6613

CP6641

CP6641 has advanced vibration-dampening technology and a stall-type drive system to maintain continuous torque during heavy-duty fastening. It can deliver maximum torque output while maintaining stable, controlled performance in demanding bolting applications.

View CP6641

Frequently Asked Questions: CP6626 Pneumatic Nutrunner

1What are the top-rated pneumatic nutrunners similar to the CP6626 for assembly lines?

The CP6626 is a leader in the 1" drive category, but for assembly lines requiring different torque ranges, it is often paired with other models in the same series. If you need a more compact tool for smaller bolts, the CP6613 (1,300 Nm) is the ideal companion. For applications requiring even more power-up to 4,100 Nm, the CP6641 is the next step up. All three models utilize the same stall-torque technology, allowing for a consistent and high-speed workflow across your entire facility.

2Are pneumatic nutrunners like the CP6626 recommended for automotive assembly?

The CP6626 is primarily designed for heavy-duty vehicle service (such as mining trucks and off-road equipment) and industrial sectors like Oil & Gas. While it is too powerful for standard passenger car assembly, it is the industry standard for remanufacturing and maintenance of heavy fleet axles, wheels, and transmissions. Its smooth, non-impacting rotation is far superior to standard impact wrenches for maintaining the precise bolt tension required in heavy-truck and bus segments.

3What is included in the best pneumatic nutrunner kits for manufacturing?

To maximize the performance and longevity of a heavy-duty tool like the CP6626, it is best purchased as part of a comprehensive "Performance Pack." A complete industrial kit typically includes the CP6626 1" Nutrunner unit paired with a high-strength S-type reaction arm for safe torque counter-action. Crucially, the kit should feature an ATC (Air Torque Control) FRL pack, which acts as the system's "first line of defense" by filtering out moisture, regulating air pressure for precise torque stalling, and providing essential lubrication to the motor. When combined with a high-flow, heavy-duty air hose and couplings, these components ensure you consistently achieve the rated ±5% accuracy while significantly reducing internal wear and preventing the unexpected downtime that can result from poor air quality.

4Who are the best industrial suppliers for CP6626 pneumatic nutrunners?

For mission-critical bolting, you should always source the CP6626 from a specialized manufacturer-direct supplier like TorqLite. Industrial suppliers who specialize in controlled bolting provide more than just the tool; they offer the required Torque-to-Pressure calibration charts, specialized custom reaction arms, and the technical expertise to ensure the tool is integrated correctly into your specific bolting procedure.
