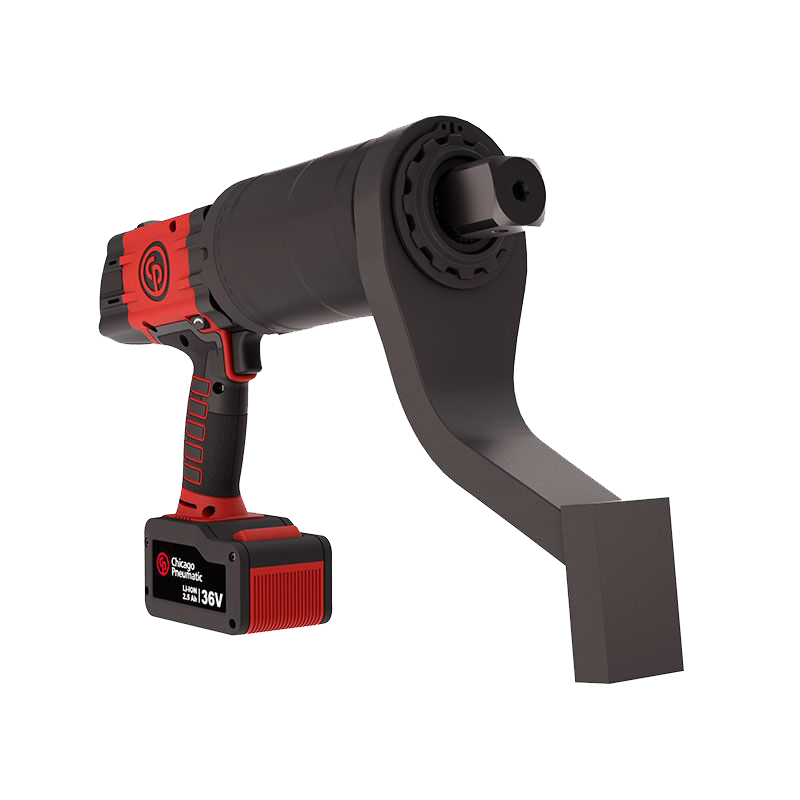

CP8681: 1-1/2" Battery Powered Torque Wrench (8100 Nm)
The Industry Standard for High-Torque Cordless Mobility
The CP8681 is the powerhouse of the CP86 series, engineered to deliver an immense 8100 Nm (5970 ft.lb) of torque in a completely cordless package. As a flagship in our collection of Battery Powered Torque Wrenches, it is specifically designed for the most demanding bolting applications in Mining, Oil & Gas, and Heavy Infrastructure, where high-pressure air lines are difficult to deploy.
Equipped with the CPLinQ digital interface, the CP8681 brings laboratory-grade traceability to the field. By eliminating the need for compressors and hoses, it allows teams to move faster between joints while maintaining a 100% tightening guarantee through digital counting sequences and real-time data export.
Key Benefits
Technical Specifications
| Feature | Imperial | Metric |
|---|---|---|
| Max Torque | 5,970 ft.lb | 8,100 Nm |
| Min Torque | 1,470 ft.lb | 2,000 Nm |
| Recommended Torque | 4,780 ft.lb | 6,480 Nm |
| Accuracy | ±4% | ±4% |
| Output Drive Size | 1-1/2" Square | 1-1/2" Square |
| Main Material Type | Steel | Steel |
| Weight (Tool & Battery Only) | 25.13 lb | 11.4 kg |
| Weight (With S-Type Arm) | 34.61 lb | 15.7 kg |
| Free Speed | 1 rpm | 1 rpm |
| Battery Type | 36V / 2.5Ah Li-ion | 36V / 2.5Ah Li-ion |
| Safety Start System | Double-trigger | Double-trigger |
| Connectivity | CPLinQ App | CPLinQ App |
| Length (L) | 16.3 in | 414 mm |
| Height (H) | 11.2 in | 285 mm |
| Width (W) | 4.2 in | 106 mm |
Design & Functional Excellence
Extreme Field Mobility
Enhance speed and safety by working without air hoses or power cables, especially in elevated or remote locations.
Thermal Management
Integrated temperature controls protect the brushless motor and battery from overheating during high-intensity bolting cycles.
Preventive Maintenance
Extend tool life by up to 20% with a CP Care contract, ensuring your Torque Multipliers stay calibrated and field-ready.
Durability for Harsh Environments
The CP8681 is built to withstand the rigors of heavy industrial sites while maintaining high-performance precision.
Maximum Torque, Maximum Quality Control - The CP8681 proves that you can have extreme power and total process control in a handheld, battery-powered tool.
Contact TorqLite today to learn how the CP8681 can optimize your heavy industrial bolting with superior power and traceability.
